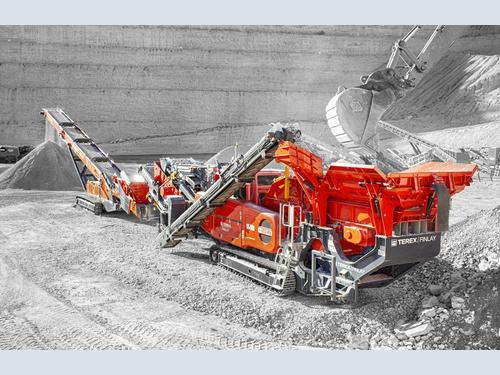

Terex Finlay's I-120RS impact crusher at Conexpo 2020.
This new generation impact crusher with redefined style and advanced technological design gives improved material flow and production capabilities in quarrying, mining, demolition and recycling applications.
The heartbeat of the machine is the proven and robust direct drive Terex® CR038 impact crusher that provides operators with high material reduction ratios and produces a consistent product shape.
A key component of the machine is the on-board innovative quick detach 3.66m x 1.53m (12’ x 5’) two deck screen and recirculating conveyor that ensures that only material meeting desired specification is deposited from the machine. A key new feature of the on-board recirculating system is the ability to rotate the conveyor from a closed loop configuration to side discharge for stockpiling oversized material.
For applications not requiring recirculation of materials for further processing the complete screening and recirculating system can be quickly and detached from the machine.
The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers and contract crushing operators.
Video of I-120RS working in asphalt recycling application
Video of I-120RS working with 674 inclined screen in C&D recycling application
Video of I-120RS working with TC-80 tracked conveyor in quarry application
Key features at a glance:
- The ease of material flow through the machine has greatly improved with each component of the machine increasing in width as the material moves through the machine.
- Fully hydraulic apron setting assist provides convenient and efficient adjustment of the aprons
- Heavy duty vibrating feeder (VGF) with integrated prescreen removes dirt fines and sizes bypass material for reprocessing.
- Quick on-board detachable recirculating system including large 3.66m x 1.53m (12’ x 5’) two deck screen.
- Recirculating conveyor can be rotated from closed loop configuration or utilized for stockpiling making an additional oversized product.
