SICK’s Safe Radar System upgrades for better protection, including robot cells.

SICK has launched the safeRS3, a next-generation safe 3D radar system designed to enable maximum productivity with highly-reliable safe access protection for workers in hazardous industrial areas, including robot cells. The robust radar detection principle is ideal for heavy industrial or harsh outdoor environments, which may challenge conventional optical detection systems.

Incorporating best-in-class safe radar technology, the SICK safeRS3 is an electro-sensitive 3D protective device for safe personal detection. With a higher measurement accuracy, it protects personnel in stationary applications to PLd or SIL2 in line with ISO 13849-1 and IEC 62061.

By introducing the safeRS3, SICK has achieved a longer 5m protective field range, with to a 100° opening angle and the ability to set up to four protective fields. A safety-over-networks version has been introduced with PROFINET control for easy integration into a PROFIsafe network.

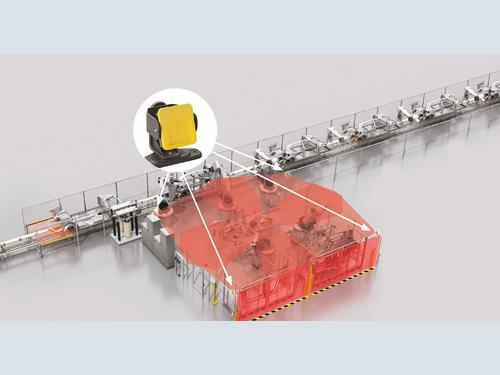

Safe Radar for Robotics

The safeRS3 extends the versatility of safe radar to more industrial applications. As a category 3 device, the SICK safeRS3 can be used in robotic applications in accordance with ISO 10218-2.

With the SICK safeRS3, operators can avoid unnecessary machine downtime while continuing to safeguard personnel. A safe automatic restart function helps to ensure maximum productivity in more complex machine cells, including those with robots. The validation view helps operators to view where field infringements are in real time, so false trips can be identified quickly.

The SICK safeRS3’s 60GHz radar detection principle ensures it can filter out particles or contamination in dirty or high-humidity conditions. The SICK safeRS3 is not affected by low or bright light. It performs accurately despite dirt, dust clouds, woodchips, plastic particles, flying swarf or sparks or steam, heavy rain or humidity.

Safe Radar for Harsh Environments

Operating at temperatures between -40 °C to +60 °C, the SICK safeRS3 therefore offers reliable protection in heavy industrial facilities including steel production, timber or plastics fabrication or in outdoor environments e.g. where gantry cranes are operating in bulk materials handling facilities, mines or quarries.

Because of its technology and 3D cone-shaped coverage, the SICK safeRS3 is ideal for hazardous areas with more complex topography. Steps, platforms, and supports, for example, can cause shadowing effects and could therefore be difficult to cover comprehensively using laser scanners, which detect in 2D planes.

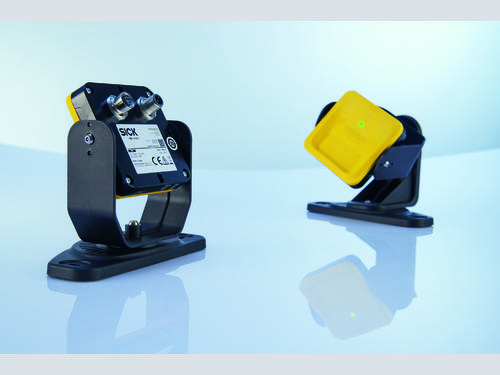

Each SICK safeRS3 radar sensor has an exceptionally rugged IP67 housing and can be configured with up to six sensors. With an adjustable operating range and selectable opening angle, the system is highly adaptable to almost any environment.

With the PROFINET version, a standard Ethernet connection also enables configuration, diagnostics and Modbus integration. Alternatively, customers can purchase an economical control with local I/O and 2 pairs of OSSDS for configuration and diagnosis via USB-C.
