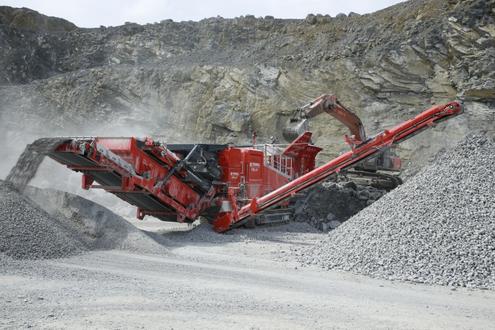

Terex Finlay launch new I-140RS Impact Crusher

Terex Finlay have followed up on the successful launch of their I-140 impactor with a new variant, the I-140RS.

This new generation impact crusher with redefined style and advanced technological design gives improved material flow and production capabilities in quarrying, mining, demolition and recycling applications.
Incorporating the robust and proven Terex® CR032 ø1270mm x 1240mm (Ø50” x 48”) impact chamber with direct drive and advanced electronic control system the machine provides operators with high material reduction ratios and produces a consistent product shape.

A significant engineering approach being introduced in this model is the material flow through the plant. The flow of material has been significantly improved by increasing the width of components as the material moves through the machine.

The machine features an advanced electronic control system that regulates the heavy duty vibrating feeder (VGF) with integrated pre-screen to maintain a consistent feed of material into the impact chamber for optimal crushing conditions. Material from the integrated pre-screen can be diverted to a stock pile via the optional by-pass conveyor, or it may join the crushed product on the main belt. The standard hopper capacity of 6m³ (7.5yd³) places the machine at the forefront in this competitive market sector.

A key component of the machine is the on-board innovative quick detach 4.8m x 1.5m (16’ x 5’) single deck screen. For applications not requiring recirculation of materials for further processing or stockpiling the complete screening and recirculating system can be quickly detached from the machine.

The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers and contract crushing operators.

Key features:

  • The ease of material flow through the machine has greatly improved with each component increasing in width as the material moves through the machine.
  • Fully hydraulic assisted apron setting features makes adjustment of the aprons convenient and efficient.
  • Heavy duty vibrating grizzly feeder (VGF) with integral pre-screen removes dirt fines and sizes bypass material for reprocessing.
  • Quick on-board detachable recirculating system including large 4.8m x 1.5m (16’ x 5’) single deck screen.
  • Recirculating conveyor can be rotated from closed loop configuration or utilized for stockpiling making an additional oversized product.
