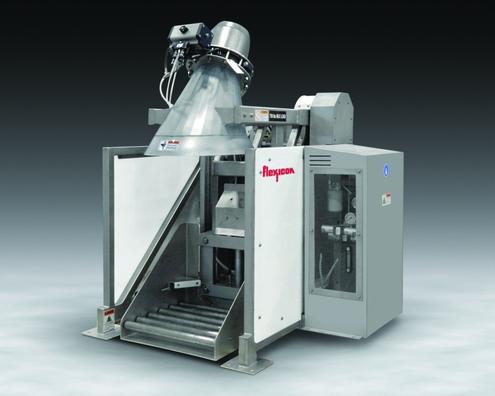

Sanitary drum tipper with roller conveyor
A new TIP-TITE® Sanitary Drum Tipper allows dust-free transfer of bulk materials from drums to downstream equipment, and rapid sanitising between changeovers.
Constructed of stainless steel and suitable for wash-down, the tipper is pneumatically powered and certified for use in areas with hazardous conditions.
A hydraulic cylinder raises and seats the drum against a discharge cone, after which a second hydraulic cylinder tips the drum to an angle of 45, 60 or 90 degrees with a motion-dampening feature. At full rotation, the outlet of the discharge cone mates with a gasketed receiving-ring fitted to the lid of any receiving vessel, creating a dust-tight seal and allowing controlled, dust-free discharge through a pneumatically-actuated butterfly valve into the vessel.
The hydraulic power unit enclosure with sight glass to check gauges and valves, is located on the frame exterior for accessibility during set-up, inspection and maintenance, and houses a pneumatic motor to drive the unit.
It is equipped with a roller conveyor that can be fed by an optional or existing infeed conveyor, allowing drums to roll into place by gravity.
