Sandvik to showcase QH331 Hydrocone crusher at CQMS in Ireland

Sandvik will be taking the opportunity of this year’s CQMS to showcase one of their bestselling cone crushers. CQMS is Ireland’s largest show for the construction and quarrying industries and is hosted by Machinery Movers Magazine. The event takes place on Friday 21st and Saturday 22nd April at Molloy’s Quarry Tinnycross, Tullamore in Co. Offaly.

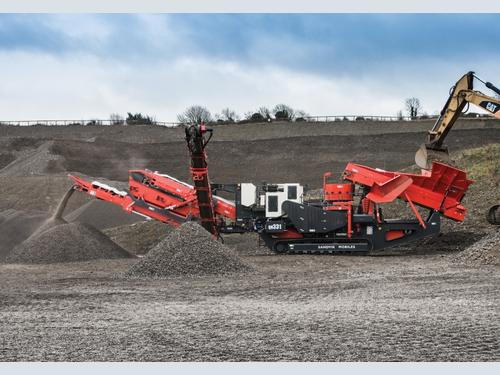

The Sandvik QH331 is a compact, high quality machine designed to meet high product quality demands through the use of the renowned Sandvik CH430 Hydrocone crusher but on a tracked chassis. It offers you one of the most versatile units on the market with a choice of six different crushing chambers and a variety of bush settings. Possessing sturdy construction, its power management, coupled with the market leading CH430 cone crusher, makes the QH331 ideal for aggregate production wherever it is needed.

A key attribute of the QH331 is the advanced design of the CH430 cone. It possesses a longer and steeper crushing chamber than other comparable models. The material therefore remains in the crushing chamber longer, optimizing reduction and providing a superior product shape. The CH430 comes equipped with a hydroset CSS regulation system, which allows you to adjust the CSS (closed side setting) whilst crushing, via the main control panel. The automatic setting regulation system fitted will not only optimize production for you but will also keep track of liner wear to minimize interruptions and downtime.

The Sandvik QH331 track mounted cone crusher provides you with an environmentally friendly, economical and highly efficient machine. Powered by a CAT C9 or C9.3 engine and direct drive, you will benefit from maximum production capacity combined with remarkable fuel savings. This latter change now sees the QH331 use its power more efficiently, and consequently enhances its operational capabilities through tighter closed side settings and larger bush variations.

Safety has been at the core of the development of the QH331, and this has led to all models being fitted with a camera that oversees the crushing chamber together with the fitting of a screen in the control cabinet. These provide the operator with greater safety, and more control of the crusher which in turn produces higher sustained output. All the features on the QH331 have been designed to provide you with a flexible, user friendly and efficient solution. Other key features include:

  • Level sensor to help regulate the feed and to optimize production, reduction and shape.
  • Unique Constant Liner Performance for extended life of chamber liners, minimizing your downtime and costs.
  • Hydraulically driven cooling fan, with auto reverse function, to back flush dust from the radiator, thereby saving you time and effort, thus maximizing uptime
  • Bridge coil metal detector is fitted over the feed conveyor for an enhanced and more controlled detection of tramp material
  • All engine service points are easily accessible, with low level drain points for ease of maintenance.
  • Capable of working in environments of up to 50°C without the need for oil changes
  • •Enhanced fuel economy providing lower cost of ownership and a reduction in emissions by up to 45% producing a lower carbon footprint.

The optional hanging screen system available on the Premium range of cone crushers now allows the flexibility to produce a screened product and recirculate back into the feed hopper. This is a 13 x 5’ / 4 x 1.5m screen which comes complete with a hydraulically rotating re-circulating conveyor and 1.75m extended main conveyor.

We look forward to seeing you at CQMS 2017, which is a show that will allow us to focus on the local requirements of customers. Our stand will be located at: Zone 3, Stand 4,
