Dual Bulk Bag Filling/Palletising System fills 30 tonnes/hr of copper concentrate

Vale Canada Limited operates one of the largest integrated mining facilities in the world here, mining and processing ores containing nickel, copper and other metals.

The company's Sudbury mining complex has been in operation for over 100 years.  Starting in 2012, the Sudbury plant undertook a billion-dollar Clean Atmospheric Emissions Reduction (AER) project to reduce sulfur dioxide stack emissions by 85 percent.

Previously, Vale refined both nickel and copper in Sudbury, says Tom Zanetti, senior project manager on the Clean AER Project. After analysing the total life of the mines and the long-term projections of mine capacity in the region, the company decided to focus on nickel production and sell copper concentrate to other companies instead of refining it in-house.

Vale worked with Ionic Engineering of Lively, Ontario to design a material handling system capable of packaging 24 to 32 tonnes/h of the copper concentrate into bulk bags by integrating a Flexicon automated bulk bag filling system into its existing process.

To handle the volume, Francois Nzotungwanimana, Operations Manager at Ionic Engineering and Project Engineer on the bulk bagging project, specified the dual bulk bag fillers, roller conveyors and a central pallet dispenser comprising the Flexicon system.  In addition, Ionic designed the electrical and control systems, sourced labelling machines and other equipment, designed safety systems and performed the systems integration including programming, electrical and safety. The Ionic Engineering team also performed additional mechanical design and safety engineering.

Creating copper concentrate
The ore mined on site is first ground into a flour-like powder, says Zanetti. A flotation process removes waste rock. The resulting bulk concentrate is sent to a smelter, which produces a high-grade material containing both nickel and copper. Another flotation process separates the nickel and copper concentrates. Vale refines the nickel concentrate into metal on site.

The copper concentrate, after de-watering and drying, has a texture similar to that of sand and contains 60 to 70 percent copper. It is conveyed to two large feed hoppers positioned above the dual bulk bag filling stations, each hopper holding 10 tonnes, enough to fill five bulk bags.

Pallets automatically dispensed to bulk bag fillers
Flexicon’s Project Engineering Division integrated a pallet dispenser, pallet turntables, two 7.5 m long roller conveyors, and two Swing-Down® bulk bag fillers. The pallet dispenser is positioned between—and at a right angle to—the mirror-image bag filling lines.

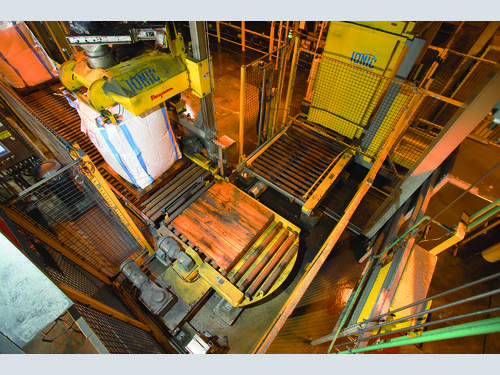

A forklift loads 10 to 14 pallets at a time onto the pallet dispenser. When one of the bulk bag fillers calls for a pallet, the dispenser lifts all except the bottom pallet, which is sent to the left or right filler by the powered roller conveyor. A turntable then rotates the pallet 90 degrees to align it with the filler.

Automating bulk bag filling operations

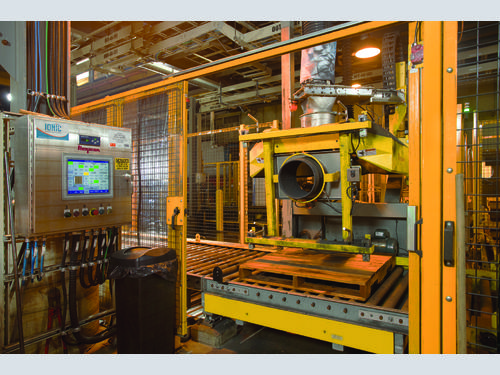

Once a pallet is in place, the filler's Swing-Down fill head lowers and pivots from horizontal orientation to vertical, positioning the discharge chute and bag strap hooks within reach of an operator standing on the plant floor. This furthers the plant's safety initiatives by eliminating the need to step on roller conveyors or strain to reach overhead connection points.

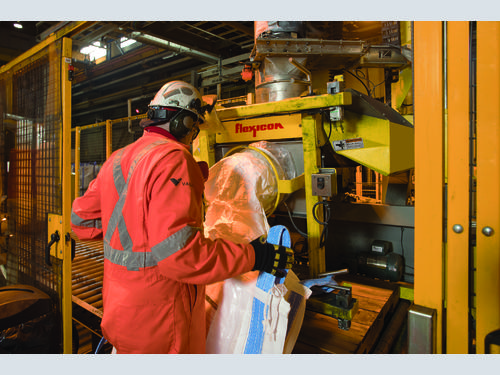

Once the operator places the bulk bag loops over automated latches, fits the bag spout over an inflatable spout seal and pushes the inflator button, the filling cycle is fully automatic:

1) The fill head pivots back to horizontal, raises to filling height and inflates the bag to remove creases

2) After several safety conditions are met, a knife gate valve opens, allowing the respective overhead feed hopper to gravity-discharge into the bulk bag at maximum feed rate, as displaced air from the bag is vented through a filter sock to contain airborne dust

3) At timed intervals, a densification deck below the pallet vibrates to stabilise the bag

4) Load cells continually monitor the weight of the copper concentrate as the bag is filled to a weight of 2 tonnes

5) The controller closes the knife gate valve, releases the bag loops and deflates/disconnects the spout

6) The powered roller conveyor moves the palletised bag out of the filler and onto several accumulating powered roller conveyors. The filled bag stops at the last accumulating conveyor where an automated labeller applies an identification label, before being rolled onto a gravity-feed roller conveyor toward a ramp that stops it in position for unloading.

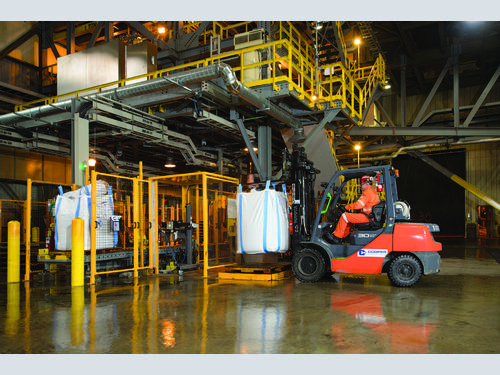

7) A forklift transfers the filled bags to a storage area, ready for shipment to customers.

In addition to fitting into the limited space available, the dual bulk bag filler configuration provides capacity, flexibility, and redundancy for the bag filling process. Automatic pallet dispensing reduces wait time and the likelihood of worker injury.
