Distributes liquids throughout solids in 1-3 minutes

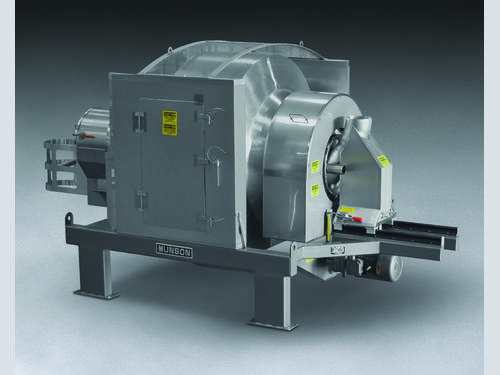

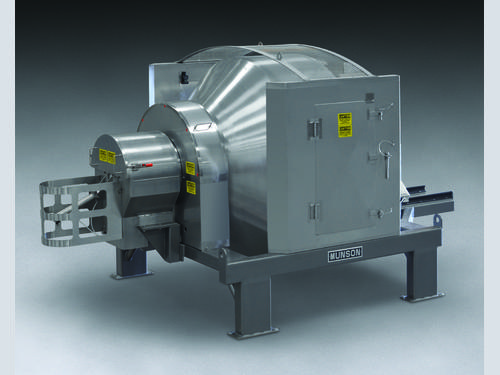

A new sanitary Munson Rotary Batch Mixer model 700-TH-40-SS with internal spray line distributes liquid additions throughout dry solids in one to three minutes with total uniformity and minimal shear or heat.
The spray line can introduce coatings, flavourings, vitamins or active ingredients in liquid form into any bulk solid food, nutraceutical, chemical or mineral product.
Proprietary mixing flights within the rotating drum fold, tumble, cut and turn the material, which recombines 288 times per minute and creates a wide bed of moving material onto which liquids can be sprayed in trace amounts or large quantities for rapid incorporation. The flights also direct the material toward and through a stationary, pneumatically-actuated plug gate valve for total discharge, eliminating residual that would otherwise be wasted or require manual removal prior to cleaning.
Twin doors on opposing sides of the mixing vessel and a sliding intake chute provide unobstructed access to the interior, intake spout and seal area for cleaning, sanitising and visual inspection of all material contact surfaces. An internal supply line allows in-place rinsing and cleaning. Constructed of stainless steel finished to sanitary standards, the mixer has a useable batch capacity of 1,130 litres, total capacity of 2,320 litres and is equally effective in blending of batches from 100 percent of rated capacity to as low as 15 percent without liquid additions, and to 33 percent with liquid additions.
The rotating drum is supported by two oversized trunnion rings that ride on heavy-duty alloy roller assemblies, providing long life with minimal maintenance. The design eliminates the need for an internal shaft with seals contacting material. To contain dust, the machine has one seal at the inlet, which is mounted externally to allow rapid, inexpensive replacement, according to the company.
