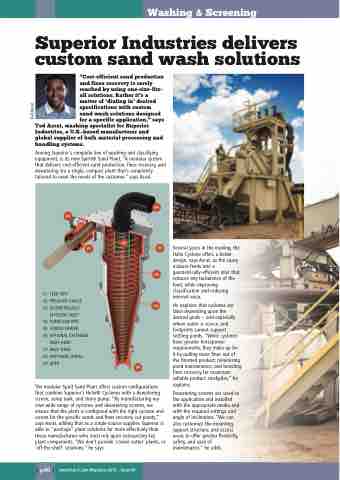

Page 46 - Hub Magazine Issue 56

Washing & Screening
Superior Industries delivers
custom sand wash solutions
“Cost-efficient sand production and fines recovery is rarely reached by using one-size-fits- all solutions. Rather it’s a matter of ‘dialing in’ desired specifications with custom sand wash solutions designed for a specific application,” says
Ted Asrat, washing specialist for Superior Industries, a U.S.-based manufacturer and global supplier of bulk material processing and handling systems.
Among Superior’s complete line of washing and classifying equipment, is its new Spirit® Sand Plant, “A modular system that delivers cost-efficient sand production, fines recovery, and dewatering via a single, compact plant that’s completely tailored to meet the needs of the customer,” says Asrat.
01 FEED PIPE
02 PRESSURE GAUGE
03 GEOMETRICALLY
EFFICIENT INLET
04 OVERFLOW PIPE
05 VORTEX FINDER
06 OPTIONAL EXTENDED
INLET HEAD
07 INLET HEAD
08 URETHANE LINING
09 APEX
The modular Spirit Sand Plant offers custom configurations that combine Superior’s Helix® Cyclones with a dewatering screen, sump tank, and slurry pump. “By manufacturing our own wide range of cyclones and dewatering screens, we ensure that the plant is configured with the right cyclone and screen for the specific sands and fines recovery cut points,” says Asrat, adding that as a single-source supplier, Superior is able to “package” plant solutions far more effectively than those manufacturers who must rely upon outsourcing key plant components. “We don’t provide ‘cookie-cutter’ plants, or ‘off-the-shelf’ solutions,” he says.
Several years in the making, the Helix Cyclone offers a better design, says Asrat, as the slurry mixture feeds into a geometrically-efficient inlet that reduces any turbulence of the feed, while improving classification and reducing internal wear.
He explains that cyclones are ideal depending upon the desired goals – and especially where water is scarce, and footprints cannot support settling ponds. “While cyclones have greater horsepower requirements, they make up for it by pulling more fines out of the finished product; minimizing pond maintenance; and boosting fines recovery for maximum sellable product stockpiles,” he explains.
Dewatering screens are sized to the application and installed with the appropriate media and with the required settings and angle of inclination. “We can also customize the mounting, support structure, and access areas to offer greater flexibility, safety, and ease of maintenance,” he adds.
| p46 |
www.hub-4.com May/June 2019 - Issue 56
Ted Asrat
